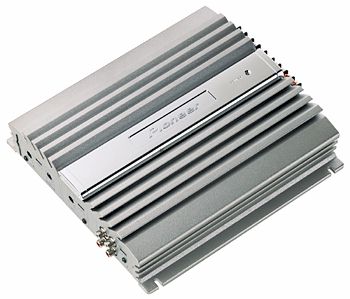

Pioneer Amplifier
GM-X334

4-Channel Power Amplifier with Built-In Crossover


Specifications:

• Continuous Power (20Hz-20kHz, 0.08% THD)
• 4 ch: (4 Ohm) 30Wx4
• 4 ch: (2 Ohm) 35Wx4
• 2 ch: (4 Ohm) 70Wx2
• Maximum Power (EIAJ)
• 4 ch: (4 Ohm) 60Wx4
• 2 ch: (4 Ohm) 140Wx2
• Frequency Response: 10Hz - 45kHz (0,-1dB)
• Total Harmonic Distortion: 0.008% (1kHz, 4W )
• Signal-to-Noise Ratio: 106dB (IHF-A Weighted, at 1kHz)
• Dimensions: 8-1/8" x 2" x 10-5/8"

Features

• Bridgeable 2/3/4 Channel Capability
• PWM MOSFET Power Supply
• Balanced Isolator Input Circuit
• Screw-Type Power/Ground Terminals
• Screw-Type Speaker Terminals
• RCA Inputs (4 Channel)
• Hi-Volt Input Level Control (400mV-4.5V)
• Speaker Level Inputs (4 Channel)
• Selectable Crossover: 80Hz, -18dB/oct. LPF or 80Hz, -12dB/oct.
• HPF (A,B Ch.)
• Bass Boost (60Hz, 0 to +12dB)
